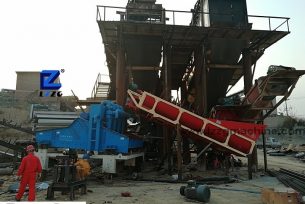

kaolin washing production line
  • kaolin washing production line

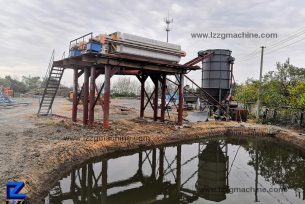

  • filter press for sludge dewatering

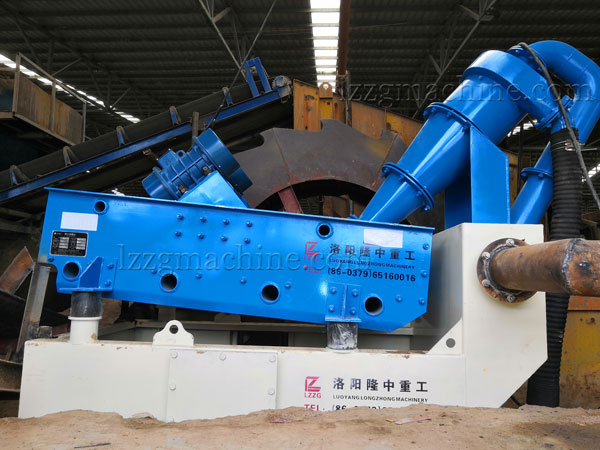

 Hydro-cyclone sand separator used in the sand wash plants

LZZG sand washing plants are the perfect solution for washing artificial sand & aggregates. The wash plant is composed of a spiral sand washing machine, a dewatering screen, a hydro-cyclone group, sludge thickening tank, filter press. The equipment can recover a large number of fines sand lost by the sand washing machine, improve the economic benefit, reduce the disposal cost of the tail water and the pollution and damage caused by the loss of fine sand.

We have specialists in the design of sand washing plant projects and we provide turnkey solutions for our customers. We can meet the specific needs of our customers for custom packaging solutions.

Working principle

sand washing plant with fine sand recovery and tail water purification in China

Screening

The material is conveyed by a belt conveyor to a circular vibrating screen or a trommel screen to screen out several materials of different sizes.

Cleaning and dehydration

the sieve under the specification enters the cleaning water tank of the sand washing and recycling machine, the sand washing wheel rotates, the material in the cleaning tank is stirred, the cleaning operation is performed, the impurities covering the surface of the material can be removed, and the impurities are cleaned after cleaning. The granular material is sent to the dewatering screen for dewatering by the sand.

Fine material recovery

the overflow of the integrated machine enters the tail water collecting tank through the pipeline, the tailwater is driven into the separator by the slurry pump, and the sediment is separated by the separator. After the recovery, the fine material is discharged to the dewatering sieve surface and the coarse material is evenly distributed. Discharge after mixing and dehydration. The discharge port is connected to the belt conveyor to transport the finished material to the designated position.

Solid-liquid separation

At the same time, the sediment suspended by the separator, the content of which is not more than 5%, is discharged into the sewage pool, and then the tail water is pumped from the sewage pool into the flocculation tank to carry out the mud-water separation operation. The flocculation tank treats about 80% of the tail water into clean water, and then directly enters the clear water pool through the overflow port.

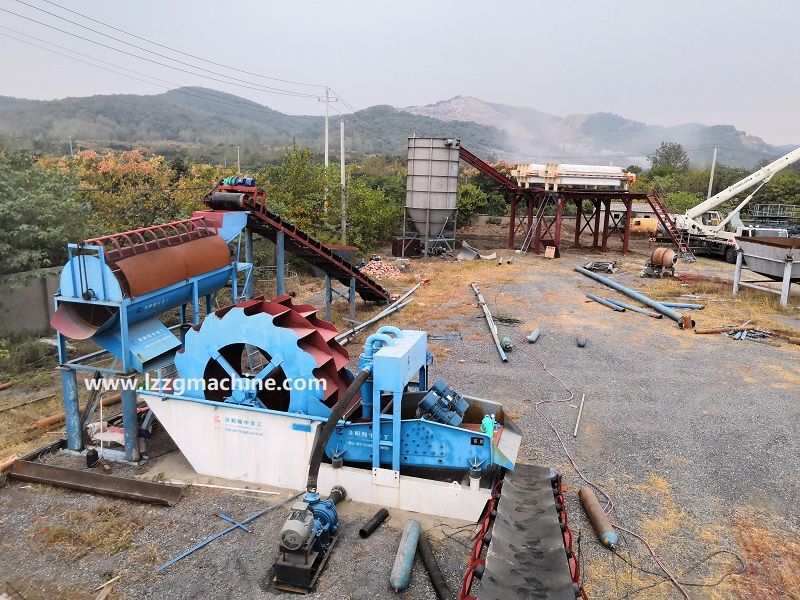

sand washing production line in Beijing China

Sludge dewatering

The concentrated mud passes through the bottom of the flocculation tank and is pumped into the plate and frame filter press. The filter press presses the concentrated mud into a mud cake to realize dry heap, landfill or other uses. After the filter press, the clean water enters the clear water tank to realize the recycling of clean water and zero discharge of the entire process.

Service Network

The sand wash plant products were exported to Europe, Australia, North America, South America, Thailand, Malaysia, Vietnam Saudi Arabia, Pakistan, South Africa, etc.

Product Features

1. Use high-quality hydro-cyclone to reduce fines sand loss.

2. Reduce water waste. Improve product quality.

3. Save on investment costs, environmentally friendly.

4. The investment is small, the floor space is small, and the damage to the equipment components can be reduced, and the service life of the equipment can be prolonged.

5. Sediment separation, mud-water separation and solid waste dry discharge, the steps are clear, the division of labor is meticulous, so as to achieve the purpose of simple and efficient.



hydrocyclone sand separator structure

The hydrocyclone is a high-efficiency grading and desliming device. It has a simple structure and a large processing capacity and is widely used in the sand washing process. The LZZG hydrocyclone uses a wear-resistant alloy material to make the discharge port and the feed material. The wear parts of the mouth effectively solve the wear problem.In the traditional artificial sand wet processing process, when the artificial sand is washed and dewatered by a spiral sand washing machine or a wheel sand washing machine, the loss of fine sand in the artificial sand can hardly be controlled. The fines sand recovery system can effectively reduce the loss of fine sand and control it within 5%-10%, which is a good solution to the high fineness modulus of the finished sand in the artificial aggregate processing system. The problem of low stone powder content increases customer profitability.

Prevent fine sand and sludge from entering the sedimentation tank, prevent siltation of the sedimentation tank, help to protect the environment, and greatly reduce the cost of cleaning the sedimentation tank;

Application of sand washing plant

The sand washing equipment suit for ore, sand, slime coal, frac sand washing and dewatering.
Sand washing equipment is widely used in construction, sand and gravel plants, hydropower station concrete dam construction sites and other industries. It has high washing degree, reasonable structure, large processing capacity, low power consumption, and less sand loss during sand washing machine. In particular, the transmission part of the sand washing machine is isolated from water and sand, so the failure rate is much lower than that of common sand washing equipment.

Technical parameters

Model feed size (mm) Spiral diameter (mm) Sink length (mm) sieve size (mm) Separator Specifications Processing water volume (m3/h) Sand output (t/h) Standard total power (Kw) weight (kg) Dimensions (mm) with pump and motor
LX09-65-1530J ≤10 920 8000 1500*3000 FX300*2 120-180 50-80 47 8480 11490*5560*3960
LX09-75-1836D ≤10 920 8000 1800*3600 FX350*2 160-200 60-100 56 10140 11920*5560*4080
2LX09-100-2442J ≤10 920 8000 2400*4200 FX250*4 200-280 150-180 81 16950 12630*6450*3860
2LX09-100-2448J ≤10 920 8000 2400*4800 FX250*4 200-280 150-180 81 17250 14660*6450*4150
LX11-75-1836D ≤10 1120 8500 1800*3600 FX350*2 160-240 100-150 63.5 11440 12230*5860*4250
LX11-75-1836J ≤10 1120 8500 1800*3600 FX350*2 160-240 100-150 70.5 11750 12230*5860*4250
LX11-75-1842D ≤10 1120 8500 1800*4200 FX350*2 160-240 100-150 63.5 12300 12830*5860*4250
LX11-100-1842J ≤10 1120 8500 1800*4200 FX250*4 200-280 100-150 77.5 12550 12830*5860*4250
LX11-100-1848J ≤10 1120 8500 1800*4800 FX250*4 200-280 100-150 77.5 12550 12830*5860*4250
2LX11-120-3048J ≤10 1120 8500 3000*4800 FX300*4 240-360 200-250 120 27520 13560*7860*4300
