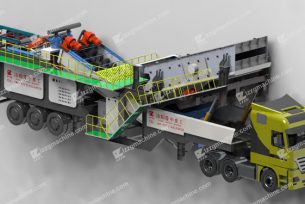

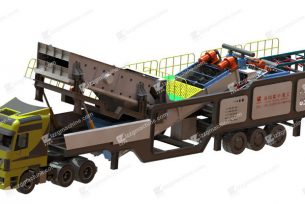

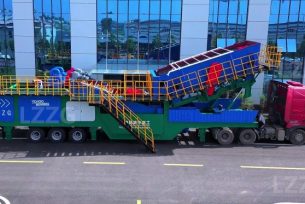

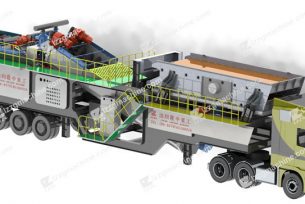

Mobile portable sand washing & screening plant

The YD series mobile portable sand washing plant has multifunction of washing and dewatering, screening.  High cleanliness and strong machine maneuverability. It can quickly reach the construction site and can enter the working state at any time. The integrated unit installation form reduces the workload of installation and erection of split components, which occupies a small area and saves costs. It is suitable for a variety of materials, integrating screening, sand-washing, dewatering, and fine sand recovery functions in one, output Up to 120 tons per hour.

Working principle

Suit materials  River pebbles, granite, limestone, basalt, coal gangue, weathered sand, river sand, yellow sand, etc.

Application range This equipment has been widely used in sand mining, mine, construction site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower, chemical industry and other industries.

Structure: mobile trailer chassis, screening device, water washing device, dewatering recovery device, pump and motor components, conveyor belt, electronic control and hydraulic system, etc.
Work flow: Material artificial sand or natural sand is fed to the screening device via a belt conveyor. The material on the screen is conveyed to the storage yard by the belt conveyor as a finished product. The under-screen material enters the sand washing device through the flow trough and is in the sand washing device It is fully immersed, stirred, and washed in the process. The cleaned materials are then dewatered and recovered when they are transported to the front-end dehydration equipment to produce qualified finished sand.

Product Features

1. Highly integrated and automated design eliminates tedious site layout, basic installation and other tasks.
2, strong mobility, the whole machine is portable, convenient, efficient, environmentally friendly, intelligent screening, washing, recycling, dewatering workstation.
3. Integrating the entire unit eliminates the complex site infrastructure installation operations of split components, reduces the consumption of materials and man-hours, and the unit’s reasonably compact space layout improves the flexibility of site location
4. Reduce material transportation cost, material can be processed on site, greatly reducing material transportation cost.
5. Customized service, according to different material types and product requirements, to provide more flexible process and equipment configuration to meet user process requirements.
6, strong adaptability, can run independently, can also be grouped with the crushing equipment and back-end tail water treatment equipment, joint operations.

Technical parameters

Model Feed size (mm) Throughput (t / h) Screening specifications (mm) Sand washing specifications (mm) Dehydration specifications (mm) Separator specifications (mm) Host power (kw) Host weight (kg) Dimensions (mm)
YD2Y-50 ≤10 30-50 1800X6000 920 1500X3000 250X2 63 21620 17500X3000X4800
YD2Y-80 ≤10 50-80 2100X6000 1120 1500X3000 300X2 81.5 25960 17500X3000X4800
YD2Y-100 ≤10 80-120 2400X6000 920X2 1800X4200 350X2 126 32000 17500X3000X4800
