LX Screw Sand Washer 200t/h High Efficiency

Screw sand washing machine has a large capacity

The LX SERIES spiral sand washing machine also named sand screw, screw sand washer, which was designed to provide bigger capacity and higher cleaning level than traditional ones. The input materials’ max size can be 30mm.

Widely used for cleaning materials in the quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on. They are ideal for construction sand producers, mining companies, salt/brine reclamation, and glass recycling.

*

Working principle

It is composed of the electric motor, big and small belt pulleys, triangle belt and gear reducer. The screw sand washer adopts inclination of 15 degrees. Under the water tub, three weir plates form the sediment pool. The spiral head is immersed in this pool, and the spiral is driven by electric motor through reducer rotating continuously. The fresh water is fed from porous plate at bottom of sediment pool, and the washed sand is discharged on the top side and delivered by belt conveyor.

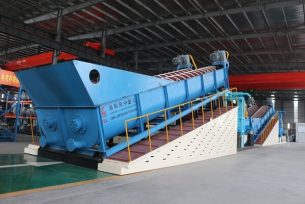

screw sand washer

Screw Sand Washer Operation Manual

Product Features

1. This sand screw is muti-functions: cleaning, dewatering, and grading.
2. Cleaning and upward conveying at the same time.
3. Low water consumption.
4. Impellers use wear-resisting plate or polyurethane material so as to reduce the running cost.
5. Designed according to low volume and low investment.

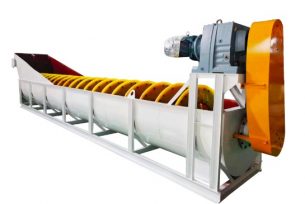

screw sand washing machine

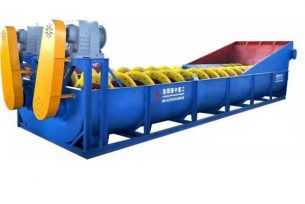

spiral sand washer lzzg

Technical parameters

Model Feed size (mm) Capacity (t/h) Spiral diameter (mm) Number of spirals Trough length (mm) Power (kw) Dimensions (mm)
LX0760 ≤10 20-40 760 1 6000 7.5 5700X1420X1900
LX0920 ≤10 30-60 920 1 8000 11 8710X1630X2080
LX1120 ≤10 40-80 1120 1 8000 18.5 9230X1840X2130
LX1500 ≤10 50-100 1500 1 8000 22 9620X2230X2480
2LX0920 ≤10 60-120 920X2 2 8000 11X2 8710X2600X2080
2LX1120 ≤10 80-160 1120X2 2 8000 18.5X2 9230X3050X2130
2LX1500 ≤10 120-250 1500X2 2 8000 22X2 9620X3730X2480






SERVICE SUPPORT


Whenever you need help for your solutions, Please remember LZZG is professional manufacture of wet processing equipment.
