6 model sand washing plant specifications: capacity price power

1. XSD Wheel Sand Washing Machine

Wheel sand washer, bucket sand washing machine
XSD bucket wheel sand washing machine is the washing equipment developed according to domestic processing situation in sand industrial by our company and take advantage of foreign advanced technology.

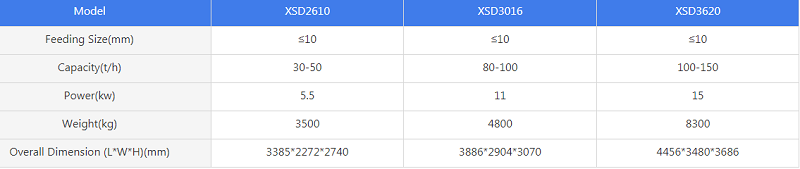

XSD Wheel Sand Washing Machine specifications:

XSD Wheel Sand Washing Machine specifications: capacity price power

2.Trommel type sand washer

According to the needs of customers, the matetials should be grading and screening before washing and dewatering. Our technical department has designed this new type of screening and washing machine. LZZG called it compact sand washer with trommel screen.

Trommel type sand washer specifications:

Trommel-type-sand-washer-Specifications

3.LSX Screw Sand Washing Machine

LSX spiral sand washing machine is designed to provide bigger capacity and higher cleaning level than traditional ones. It is also called “stone washing machine” as its input materials size at most can be 30mm.

LSX Screw Sand Washing Machine specifications:

LSX Screw Sand Washing Machine specifications

4.LZ Sand Washing and Recycling Machine

LZZG sand washers adopted advanced technology of high efficient sand washing according to practical conditions of sand industries to meet the actual requirements of users. LZZG combined wheel sand washing machine with characteristics of sand recycling plant, making a compact multiple function sand washer.

LZ Sand Washing and Recycling Machine specifications:

LZ Sand Washing and Recycling Machine specifications

5.DS Series Multi Function Sand Washer

DS series new sand washing equipment. This new sand washing equipment is made up of three parts: spiral sand washing machine, wheel washing machine and recycling machine, which inherits the advantages of the three above.

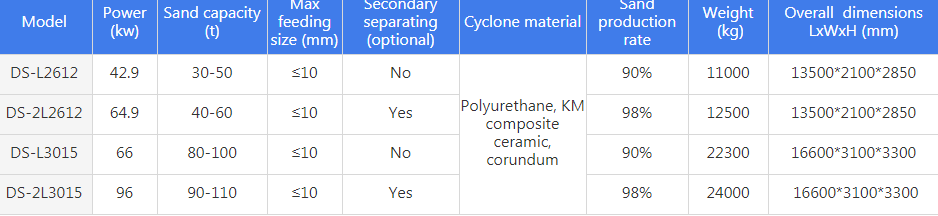

DS Series Multi Function Sand Washer specifications:

DS Series Multi Function Sand Washer specifications

6.XS Sand Washing and Dewatering Machine

No matter which kind of sand washer used in sand processing plant, the final sand always contains a large amount of water. But dry sand is needed by most of customers. In order to solve this problem, our company researched and developed XS sand washing & dewatering machine successfully, which combined washing with dewatering functions. It perfectly solved the above problem.

XS Sand Washing and Dewatering Machine specifications:

XS Sand Washing and Dewatering Machine specifications

Related Articles

The clean discharge sand washing production line

The tail water clean discharge sand washing production line

The clean discharge sand washing production line is a system solution for the problems of the dry heap of finished materials, purification of tailwater, and dry discharge of solid waste. It mainly includes screening, cleaning, dehydration, fine sand recovery, solid-liquid separation, sludge dewatering, and other aspects. The material is effectively screened, washed and dewatered throughout the system. Save resources and reduce water consumption. The entire production line has excellent continuous working performance and convenient maintenance. Long service life, easy to move and excellent effect. At the same time, it ensures no pollution and meets environmental protection requirements. Project Location: Daxing District, Beijing Project content: Mechanism sand dewatering recovery, tail water purification, solid waste drying Design Parameters: Machine sand production: 180t/h Water consumption for sand washing: 150~170m3/h; mud content in sand washing tail water is less than 7% Equipment required for…

Sand washing plant with fine sand recovery unit

Sand washing plant with hydrocyclone group LZZG sand washing plants are the perfect solution for washing artificial sand & aggregates. The sand washing plant is composed of a spiral sand washing machine, a dewatering screen, a hydro-cyclone group, and the like.The equipment can recover a large amount of fine sand lost by the sand washing machine, improve the economic benefit, reduce the disposal cost of the tailings and the pollution and damage caused by the loss of fine sand. We have specialists in the design of sand washing plant projects and we provide turnkey solutions for our customers. We can meet the specific needs of our customers for custom packaging solutions.

sand washing and recycling machine

Environmentally friendly sand washing plant design

Environmentally friendly sand washing plant design principles: 1. Seriously implement regulations, norms, and standards on environmental protection. 2. According to the sewage water quality and treatment requirements, choose a reasonable treatment process route, require the treatment technology to be suitable and reliable, and handle the effluent water quality to meet environmental protection requirements. The operation is stable and the investment is reduced while meeting the processing requirements. 3, equipment selection should consider performance and price factors, require high efficiency and energy saving, low noise, reliable operation, easy maintenance and management, and make full use of the original facilities and equipment. The equipment includes sand making machine, sand washing and recycling machine, mud water purifying system. [caption id="attachment_2407" align="alignnone" width="300"] sand washing and recycling machine[/caption] [caption id="attachment_1519" align="alignnone" width="300"] Deep Cone Thickener[/caption] [caption id="attachment_1531" align="alignnone" width="300"] Reliable filter press, Dryer filter…

sand washing plant-lzzg

The price of the complete equipment of the sand washing plant

Sand washing equipment is a kind of cleaning machine used for cleaning sandstone. It is often used in the sand making machine to complete the cleaning and screening of fine crushed sand. The sand washing machine is widely used in construction sites, sand and gravel plants (sand plants), hydropower station concrete dam sites and other industries. Sand washing line or sand washing plant is a system consisting of a variety of machines. The specific equipment composition varies according to the washing materials. The main components are sand washing machine, dewatering screen, cyclone, pump and deep cone purification. Body, filter press. The price of the sand washing plant is also related to the model of the machine. The higher the output, the higher the price. The price of the spiral sand washing machine is generally higher than that of the wheel…
