DS Series Multi Function Sand Washer

multisandwasher

Efficient Sand Washing Plant, Multiple functions, Low cost

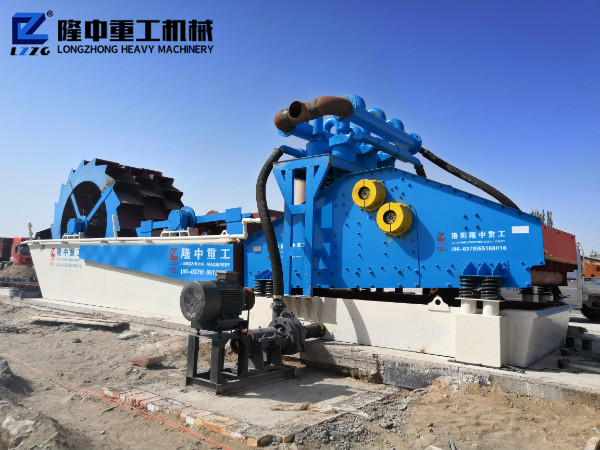

With the shortage and non-renewable of mining resources, LZZG launched DS series new sand washing equipment. This new sand washing equipment is made up of three parts: spiral sand washing machine, wheel washing machine, and recycling machine, which inherits the advantages of the three above.
It is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling, and dewatering.

Working principle

Sand becomes the qualified products by the screening machinery, then flow into spiral stirrer through a chute, the spiral sitter will clean, soak, break up sand ( especially direct at high mud content material), tailing waste water discharges into separating device to concentrate and grading. Tailing and coarse ore discharges into waterwheel to be cleaned and dehydrated at the same time, waste water discharges into secondary separating device to concentrate and grading, tailing and coarse ore discharges into dehydration and desliming device at the same time again. Then the finished product which is fully dehydrated by high frequency vibrating motor will be transported into material pile by belt conveyor and for sale.

Product Features

1. Multiple function: washing, screening, dewatering and recycling;
2. Recycling 0.16-3mm fine sand;
3. 95% sand can be recycled;
4. Moisture content within 15%,mud content of less than 2%
5. Solving sedimentation tank cleaning problem, higher economical profit.

Technical parameters

Model Feed Size (mm) Capacity (t/h) Spiral Diameter (mm) Impeller Diameter (mm) Screen Panel (mm) Hydrocyclone (mm) Power (kw) Weight (kg) Overall Size (mm)
DS-LX07-18-1224 ≤10 20-40 760 1800*800 1200*2400 300*2 48.4 9800 11900*5250*3880
DS-LX09-26-1530 ≤10 30-60 920 2600*1200 1500*3000 300*2 55 11600 14550*5560*4150
DS-LX11-30-1842 ≤10 40-80 1120 3000*1600 1800*4200 300*4 95 18450 16250*6200*3700
DS-2LX09-30-1842J ≤10 60-100 920*2 3000*1600 1800*4200 300*4 110.5 20960 16250*6200*3700
DS-2LX11-36-2442J ≤10 100-150 1120*2 3600*2000 2400*4200 350*4 140.5 25100 17450*6800*3700
DS-2LX11-36-3048J ≤10 100-160 1120*2 3600*2400 3000*4800 300*6 168 35800 18000*7400*4260
DS-2LX15-36-3048J ≤10 120-200 1500*2 3600*2400 3000*4800 350*6 196 40200 18000*7400*4600
DS-2LX15-42-3660J ≤10 160-250 1500*2 4200*3000 3600*6000 350*6 214 47150 18580*8000*5200
