High quality gold mine sand washer manufacturer

mobile sand washer

Tech specification

Model XSD2610 XSD3016 XSD3620
Dianater of Impeller(mm) ф2600*1000 ф3000*1600 ф3600*2000
Feeding Size(mm) ≤10 ≤10 ≤10
Discharging Size(mm) ≥3 ≥3 ≥3
Capacity(t/h) 20-50 50-120 120-180
Power(kw) 7.5 15 18.5
Weight(t) 2.68 3.26 4.3
Overall Dimension (LxWxH)(mm) 3320*2125*2670 3810*2686*3085 4500*3206*3480

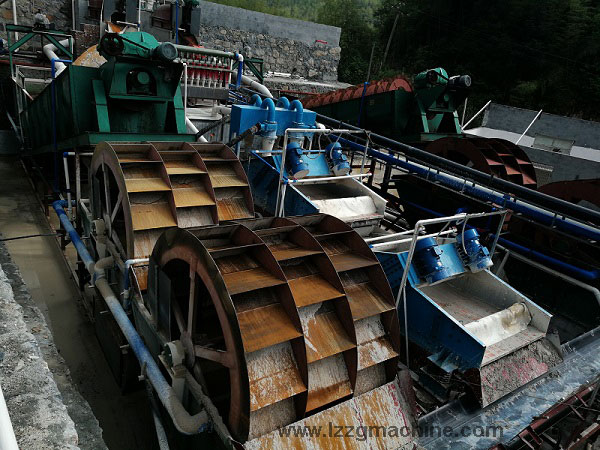

kaolin washer machine

Working principle

The bucket is driven by the motor through the reducer and rotates in a circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen. Waste water runs off through the web groove’s holes. Keep the water supply to increase final sand clean and quality. The wastewater flows into a settling pond, and washed sand is delivered through belt conveyor. This whole washing process is finished.

Features

1.Reasonable structure. The impeller drive bearing is isolated from water and materials buried in washer, which greatly avoid the bearing damaged because of soaking in water,sand and other pollutants.
2.Extremely rare lost of medium and fine sand, the grading and fineness module of washed building sand have achieved two national standards” sand for building” and” cobble and gravel for building”.
3.Almost no wear parts except for the sieve mesh of sand washer.
4.High output and low power consumption.
5.Longer service life and convenient maintenance.
6.Save water resource.
7.No pollution and high cleaning degree.

Service system

Service before sale:
Choice of model
Designing and manufacturing product according to customer’s special requirement
Company will arrange engineer to customer’s site,designing site and discussing project
Content on service:
Product inspection
Help customer to formulate the construction plan
Guarantee after sale:
Assign special after sale service team to site guiding customer to install and adjust machines
Training operator on site
