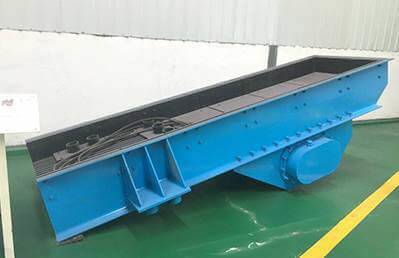

ZSW Vibrating Feeder

feeder

Heavy duty vibrating feeder, Vibratory feeder manufacturer

The LZZG Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.

PDF Download Gallery Send Email export@lylzzg.com

Chat Online
Leave Message

Working principle

Vibrating feeder also called vibratory feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.

Features

1.Smoothly vibrating and long service life.
2.Vibrating force adjustable, easy to operation.
3. Low noise and power consumption.
4. Simple structure, easy to maintenance.

Specifications - Technical Data

Model  Max feed size(mm) Capacity(t/h) Rev of eccentric shaft(r/min)  Power(kw) Size of funnel(mm) Overall dimension(mm)
ZSW-380×96 500 90-200 500-714 11 3800×960 3882×2224×2121
ZSW-420×110 580 150-350 500-800 15 4200×1100 4400×2050×1660
ZSW-490×110 580 180-380 500-800 15 4900×1100 4957×2500×1365
ZSW-490×130 750 240-450 500-800 22 4900×1300 4957×2580×2083
ZSW-600×130 750 450-800 500-800 30 6000×1300 6082×2580×2083
ZSW-600×150 800 600-1000 500-800 30 6000×1500 6082×2660×2400
