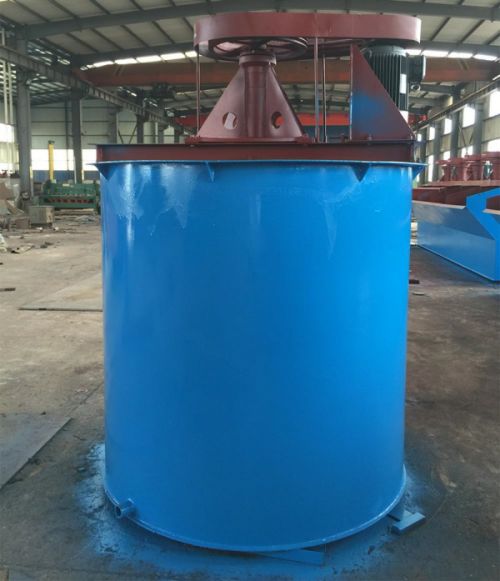

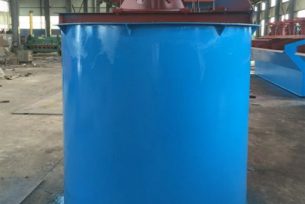

Specifications of Mining Mixing Barrel
Mining mixing barrel is an industrial equipment used for mixing slurry before metal ore flotation and mixing non-metallic minerals, mainly used in mining and chemical industries. The equipment is produced by Jiangxi Hengda, Chuanqi and other mineral processing equipment manufacturers. It adopts a flat-bottomed barrel structure with a radial circulation spiral impeller. The motor V-belt drive is used to realize the forced mixing of reagents and slurry. It is suitable for material processing scenarios with a concentration of ≤30% and a particle size of <1mm.
Working principle
The impeller is driven by the motor V-belt to rotate, and the drug and slurry are fully mixed, which increases the reaction time of the agent and strengthens the quality of the drug reaction. This machine is suitable for mining and can also be used for various chemical industries. The mixing barrel is suitable for various metal mines. It is mainly used for mixing before flotation. It is a full mixing of reagents and slurry. It can also be used for mixing other non-metallic minerals. It is used for concentrations not greater than 30% (calculated by weight) and the particle size of fixed components is less than 1mm. It is in the form of a flat-bottomed barrel-shaped radial circulation spiral impeller mechanical stirring type.
Product Features
1. Compact structure, good sealing, and ash baffle is set at the feed port to prevent water mist from flowing back;
2. Evenly stirred, the stirring blade is fan-shaped, and the contact area with the medium is large during stirring;
3. The nozzles are set in multiple rows, and the water volume is uniform and adjustable;
4. The residual ash rate is low, and the watershed setting at the bottom of the box ensures that there is no dead corner in the equipment;
5. Advanced performance, stable finished product quality, even stirring, and rapid discharge.
6. Compared with ordinary mixing barrels, the stirring is more uniform.
Technical parameters
| Model | Tank diameter (mm) | Tank height (mm) | Effective volume (m3) | Impeller diameter (mm) | Impeller speed (r/min) | Power (kw) |
Dimensions (length × width × height)
|
| XB-1000 | 1000 | 1000 | 0.7 | 250 | 500 | 1.5 |
1130×1130×1490
|
