Slurry Treatment System

slurry_treatment

Environmental slurry treatment

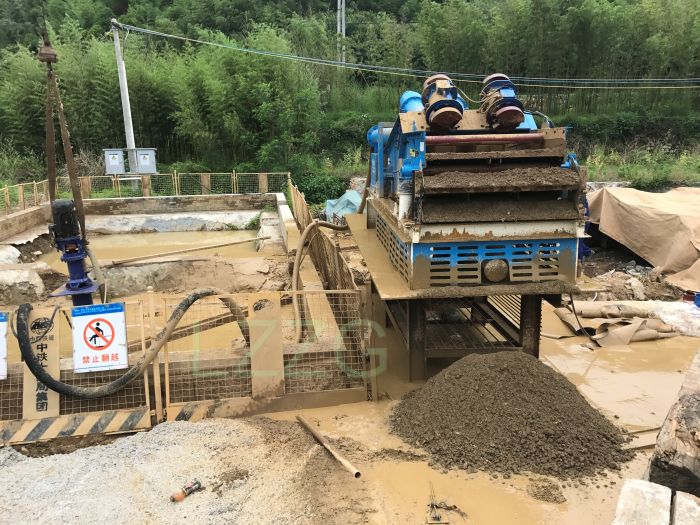

NJFX Slurry treatment system is widely used in the purification and recycling of slurry for the construction of hydro power, continuous concrete wall, slurry shield tunnel, etc. This equipment is increasingly becoming a necessity of civilized construction since it not only can cut down construction cost, but also can reduce the pollution of the environment.

PDF Download Gallery Send Email export@lylzzg.com

Chat Online
Leave Message

Working principle

1.By fully purifying slurry, it is favorable to control slurry index, reduce drill stuck phenomena, and improve drilling quality.
2.By thoroughly separating the slag and soil, it is favorable to enhance drilling efficiency.
3.By realizing the repetition use of slurry, it can save slurry making materials and thus reduce the construction cost.
4.By adopting the technique of closecycle purification and low water content of removed slag, it is favorable to reduce environmental pollution.

Features

1.High mud handling capacity, sand can be removed efficiently.
2.The polyurethane screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance

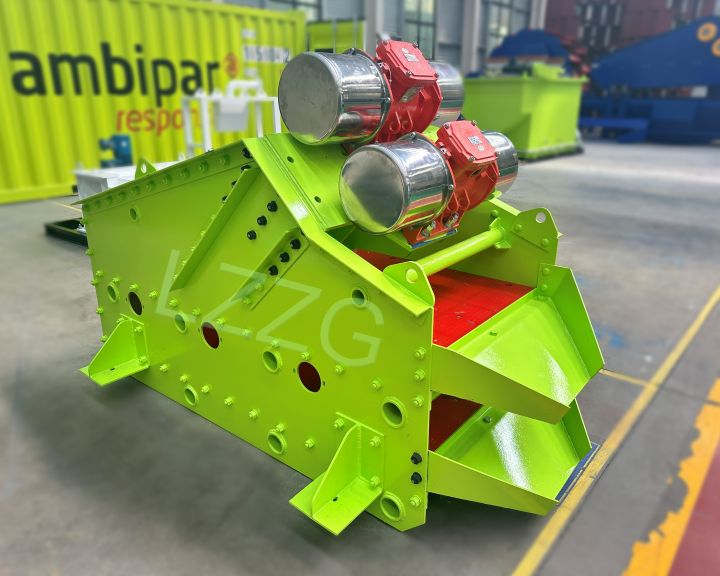

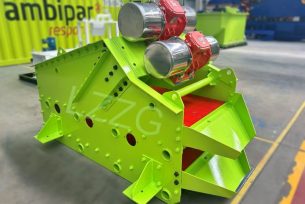

3.Slag charge screened by advanced straight-line vibrating system is effectively dewatered.
4.The adjustable vibrating force, angle and mesh size of the vibrating screen enable the equipment possess a high screening efficiency.

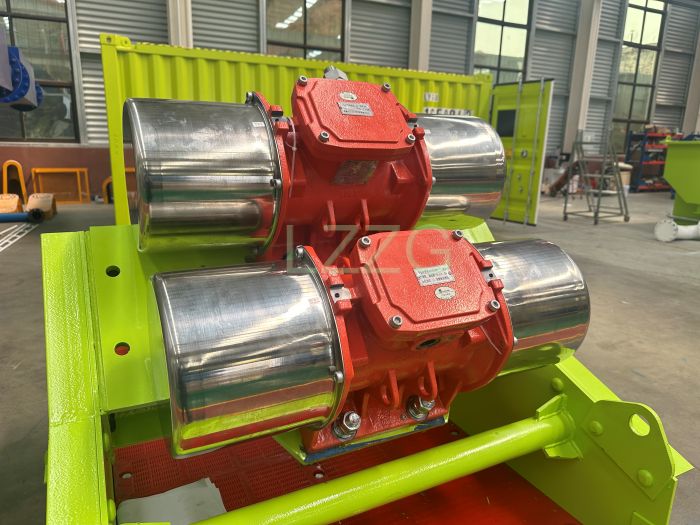

5.Energy saving efficiency is significant since the power consumption of the vibrating motor is low.
6.The abrasion and corrosion resisting slurry pump has advantages such as advanced centrifugal designing, optimal structure, stable operation and convenient maintenance.
7.The hydraulic cyclone with advanced structural technology can efficiently separate sand from slurry. Moreover, it features in light weight, corrosion and abrasion resisting material, so it can work stably in the worst condition without maintenance.

Specifications - Technical Data

Model Capacity (t/h) Power (kw) Electronic-controling Screensize (mm) Sievepore (mm) Mud separator Weight  (kg) Dimension(mm)
JH-FX40 40 9 Chint electric appliance 900*1800 0.1-3 200 2500 2186*2350*3540
JH-FX60 60 14 900*2400 250 3800 2600*2350*3640
JH-FX80 80 18 1200*2400 300 4300 2600*2780*3740
JH-FX200 200 41.4 1500*3000 500 8500 3400*3080*3900



LZZG mud processing equipment-slurry treatment system
