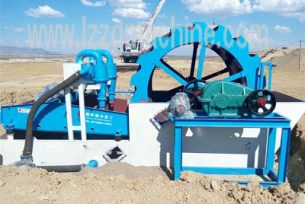

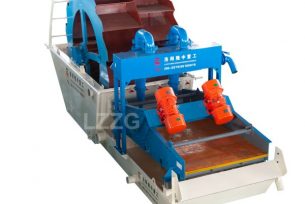

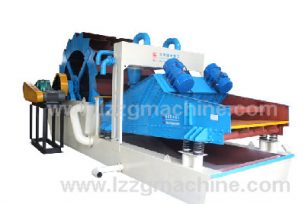

LZ Sand Washing and Recycling Machine

lz sand washing and recycling plant
  • lz sand washing and recycling plant
  • sand washer with sand recovery unit

More efficiency, Energy saving

LZZG sand washers adopted advanced technology of high efficient sand washing according to practical conditions of sand industries to meet the actual requirements of users. LZZG combined wheel sand washing machine with characteristics of sand recycling plant, making a compact multiple function sand washer.
Sand washer type: bucket type, single or double bucket
Screening sieve: PU screening sieve
Usage: It is widely used for the washing, screening, recycling and dewatering of fine sand above 0.16, especially recycling the 0.16-3mm river sand, lake sand, sea sand, construction sand, crushed sand.

PDF Download Gallery Send Email export@lylzzg.com

Get The Price

Working principle

Sand Washing machine: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen. Sand Recycling machine: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen. Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.

Features

1.Higher sand quality, lower moisture content. 2.Recycled fine size 0.16-3mm sand, lower mud content. 3.Compact structure and easy installation. 4.High productivity and 95% of fine particles kn the material can be recycled. 5.Solve cleaning problem of seclimentation tank and improve economic performance at the same time.

Specifications -

ModelImpeller diameter (mm)Screen size (mm)CycloneWater (m³/h)Feeding size (mm)Production (t/h)Total power (kw)Weight (kg)Dimension (mm)
LZ26-35-122426001200*240035080-120≤1050-8028.449355800*5200*2750
LZ26-55-153026001500*3000250*2100-140≤1080-10033.553925800*5560*2750
LZ30-55-153030001500*3000250*2100-140≤1080-1003973286700*5560*3100
LZ30-65-1530J30001500*3000300*2120-180≤1080-1204775006700*5560*3600
LZ30-75-183630001800*3600350*2160-240≤10100-1406397617331*5560*3370
LZ30-120-184230001800*4200300*4240-360≤10100-14082105657950*5560*3370
LZ30-75-1836D30001800*3600350*2160-240≤10100-1405996697420*5560*3670
LZ30-75-1842D30001800*4200350*2160-240≤10100-14059106158020*5560*3670
LZ36-100-1836D36001800*3600250*4200-280≤10100-14070133638120*5560*4100
LZ36-100-1842D36001800*4200250*4200-280≤10100-14070140408590*5560*4100
LZ36-100-1836J36001800*3600250*4200-280≤10120-16074136348120*5560*4100
LZ36-100-1842J36001800*4200250*4200-280≤10120-16074141808590*5560*4100
LZ36-100-1848J36001800*4800250*4200-280≤10120-16074146309190*5560*4100
LZ36-100-2442J36002400*4200250*4200-280≤10150-20081151208680*6450*4100
LZ36-120-2448J36002400*4800300*4240-360≤10150-20097154809280*6450*4100



FAQ:

Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test for every equipment before delivery.
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies.

Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
