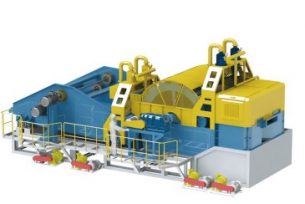

GX series high-efficiency scrubbing machine

GX series high-efficiency scrubbing machine
  • GX series high-efficiency scrubbing machine

Through the combination of wheel sand washing machine and scrubbing machine, the integrated design of scrubbing and scrubbing enables the material to fully rub against the material to remove surface attachments. The mixed material first enters the scrubbing machine for full scrubbing, and then passes through the impeller separator for cleaning and water control to achieve the effect of mud and sand separation. Simple installation, easy maintenance, and can be customized according to user needs.

【Product name】: Efficient scrubbing machine

【Feed size】: ≤10mm

[Treatment water capacity]: 50-270t/h

[Applicable materials]: river pebble, granite, limestone, weathered sand, river sand, yellow sand and other materials.

【Scope of application】: The equipment has been widely used in sand mining field, mine field, construction site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower and other industries.

【Applicable production line】: Quartz sand, fracturing sand production line, limestone crushing and grinding, basalt crushing and sand making and other material production lines.

*

Working principle

The mixed material first enters the scrubbing machine for full scrubbing, and then passes through the impeller separator for cleaning and water control to achieve the effect of mud and sand separation. The bucket material enters the coarse sand dewatering area of ​​the dewatering screen for dehydration, and the overflowing dirty water is concentrated and concentrated by gravity classification of the separator group and then discharged into the inlet of the impeller separator through the underflow port for secondary cleaning. The mixture passing through the coarse sand dewatering zone is then concentrated by gravity classification in the second separator group and discharged into the fine sand dewatering zone of the dewatering screen through the underflow port. So as to achieve efficient sand washing.

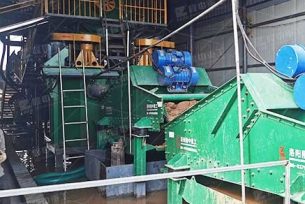

Sand washing and scrubbing machine

Product Features

The structure design is compact and reasonable. The combination of the traditional scrubbing machine and the wheeled sand washing machine can fully rub the material with the material to remove the surface attachments. At the same time, the work efficiency is relatively high. The high-speed rotating stirring shaft greatly improves the sand washing efficiency. .
Reasonable structural design makes it have the advantages of small footprint, simple installation, convenient maintenance, long service life, etc. At the same time, it reduces the number of wearing parts and minimizes maintenance and operation costs. This equipment can be tailored to specific models according to customer requirements.

Technical parameters

Model Capacity (t/h) Scrub Specifications (mm) Impeller size (mm) Sieve plate specification (mm) Power (kw) Machine weight (kg) Dimensions (mm)
GX50 30-60 CX1.5 2512 1530 42.5 9860 8320X3200X3560
GX100 60-100 CX3 2516 1842 68.5 13450 9540X3520X3860
GX150 100-150 CX2-2 3020 2442 96.5 18780 8850X4250X4660
GX200 150-200 CX2.5-2 3024 3048 123 23560 9860X4800X5200
GX250 200-250 CX3-2 3030 3660 163 28800 11360X5820X5400
