Mud hydro cyclone desander for solid control

Hydrocyclone is a classification device that uses centrifugal force to accelerate the settlement of ore particles. It is widely used in many industrial sectors such as chemical industry, environmental protection, food, medicine, etc., to achieve sand removal, turbidity reduction, and solid-liquid separation in the field of water treatment.

FX350 fine sand hydro-cyclone
Features of our hydrocyclone

1. Simple structure and easy installation and operation.
2. Wide application range, good abrasion resistance, long service life, and high efficiency.
3. Strong processing capacity, low operating cost, and high classification accuracy

Mud hydro cyclone desander

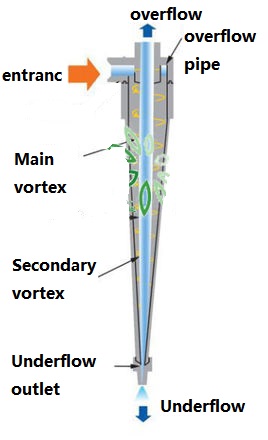

Working principle

The carrier fluid mixture enters the hydrocyclone through one or more tangential inlets, causing the fluid to rotate within the device. The cone of the hydrocyclone accelerates the spiral flow of the fluid, establishes a free vortex, and creates a large centrifugal force. The centrifugal force causes the light material to dissipate to the center of the hydrocyclone, and the dense material is thrown to the outer wall due to the force. By maintaining the underflow under high pressure, the concentrated oil core of the vortex is forced to countercurrent. As a result, concentrated oil flows to overflow, while oil-free water flows to the bottom.

Our company specializes in the production of high-quality mud desander for mud separation systems, FX250 hydrocyclone. Our factory can also provide customized services according to your size or other requirements. Provide competitive prices and services.
