SS304 Dewatering Screen

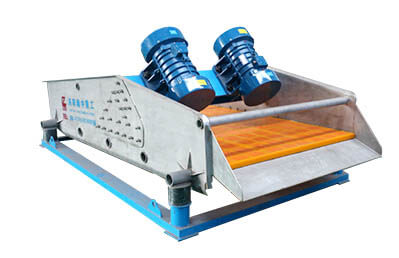

dewatering_screens_machine

Belong to the dewatering equipment, but the structure of dewatering screen is different when acting on different material, For example, sand dewatering machine in sand washing production line is different from the tailings dewatering sieve which is commonly used in the concentrating mill.
This type of stainless steel dewatering screen is borned by the R & D department and through many times testing . with low energy wasting and high efficiency as a whole, only for the special material. Mainly used for quartz sand, potassium feldspar, high acidic or alkaline materials and so on.

PDF Download Gallery Send Email export@lylzzg.com

Chat Online
Leave Message

Working principle

SS304 dewatering screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal forces is generated by the eccentric blocks will superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand can be dehydrated and filtered.

Features

1.Variety of screen sizes
2.Custom sizes to fit your plant
3.Low moisture content
4.Complete dewatering deck using urethane modules
5.Goodyear rubber suspensions for long life
6.Highest quality vibrating electric motors
7.Superior design to sub-decks to support urethane screens
9.Acid and alkali corrosion resistance, suitable for special occasions

Specifications - Technical Data

Model Screen area (m²) Power (kw) Capacity (t/h) Feed size (mm) Weight (kg) Overall dimension (L*W*H)(mm)
TS0918 1.62 2*0.75 10-20 ≤10 1600 1885*1290*1024
TS0924 2.16 2*0.75 10-20 ≤10 2000 2485*1290*1224
TS1224 2.88 2*1.5 30-50 ≤10 2300 2485*1590*1324
TS1230 3.6 2*2.2 30-50 ≤10 2530 3085*1590*1424
TS1236 4.32 2*2.2 30-50 ≤10 2880 3685*1590*1524
TS1530 4.5 2*3 50-80 ≤10 3180 3083*1890*1421
TS1536 5.4 2*3 50-80 ≤10 3300 3683*1890*1601
TS1836 6.48 2*4 100-150 ≤10 3750 3715*2466*1855
TS1842 7.56 2*4 100-150 ≤10 4380 4315*2466*2044
TS1845 8.1 2*4 100-150 ≤10 4680 4515*2446*2135
TS1848 8.64 2*6.5 100-150 ≤10 4960 4915*2466*2244
TS2442 10.08 2*7.5 130-180 ≤10 5130 4315*3085*2042
TS2445 10.8 2*7.5 130-180 ≤10 5450 4615*3085*2140
TS2448 11.52 2*7.5 130-180 ≤10 5880 4915*3085*2242
