Double Deck Dewatering Screen for tail slurry materials, is my company’s new screening equipment, with low energy consumption, the characteristics of large capacity, belong to the domestic same industry leading products.
This series Widely used in Tailings processing, coal slime dewatering, washed quartz sand and mud dehydration processing link, etc.Suitable for dewatering, medium drainage , spraying, dry and wet classifying for medium and fine material.
Double Deck Dewatering Screen adopts dual-motor self-synchronization technology.The motors coordinate with universal eccentric and adjustable amplitude vibrator.When the two motors start to work, the vibrators move reversely at the same time.The centrifugal force is generated by the eccentric blocks superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand will be dehydrated and filtered.
1.Choose polyurethane screenas its vibrating screen.
2.Customized sizes.According to different situation, not only polyurathane
screen mesh can be adjustable, but also its length, width and screen layers
can be manufactured for different needs.
3.Simple structure, easliy installation and lower invest.
4.Bending a whole steel plate as its main body, no welding and no leaking.
5.Final sand water content down to 15%, convenient in packing and delivery.
|Model||Screen area (m²)||Power (kw)||Capacity (m³/h)||Feed size (mm)||Weight (t)||Overall dimension (L*W*H)(mm)|

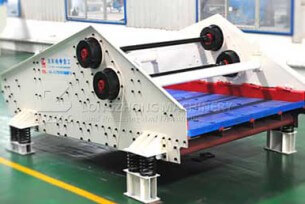

Mine tailings disposal, Tailings disposal methods The high waste water content of tailings is one of the main areas of concerning for the mining industry now, and mine operators are increasingly adopting all kinds of tailings disposal methods to minimise the impact of the tailings on the environment. GP tailing dewatering screen is specially designed for mineral tailing recycling, which combines the characteristics of mineral tailing with high frequency sieve. The dewatering unit consists of hydrocyclones, linear motion vibrating screen,…
The linear vibrating screen uses the vibrating motor as the vibration power source so that the material is thrown up on the screen and moves forward in a straight line. The material enters the feeding port of the screening machine evenly from the feeder and generates the number through the multi-layer screen. The sieves and sieves of various specifications are discharged from the respective outlets. The utility model has the advantages of low energy consumption, high output, simple structure, easy…

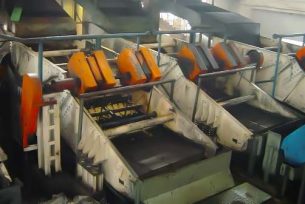

Four-layer sieve vibrating screen has a double-bearing screen box with two flange-mounted bearings on the shaft. The outer end of the screen box shaft is equipped with a flywheel and a counterweight and pulley. The screen box shaft is driven by three V-belts mounted by the motor mounted on the sub-frame. The sub-frame is rigidly connected to the machine chassis, and the screen box spring is used to support the screen box.

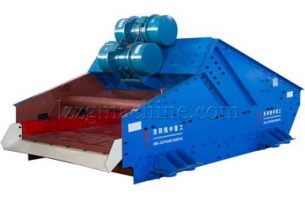

Drier materials, High dewatering ratio Base on lower water content sand is well needed and sold in market, we do research and manufacture a series new type dewatering screen. LZZG choose PU screen as its new type sand washer sieve, because its long service life and not easily blocked in screening.When processing coal mud or dirt mixed water, steel mesh is easily blocked and adjusting its mesh size will highly reduce its capacity. It is important for some owner to…
High-quality trommel separator supplier The trommel screen, also known as a rotary screen or drum screen, it is a mechanical screening device used to separate materials like soil, mulch, and sand ore, coal, gravel, etc., mainly in the mineral and solid-waste processing industries. It's designed to minimize setup time and be easy and convenient to service. We have perfected the ability to size and customize trommel screens with different materials to suit the application, such as the updated product compact…
Plastic vibrating screen application The plastic vibrating screen is a multi-layer linear vibrating screen. It is used for screening and grading powdery and granular materials, and is widely used in plastics, abrasives, chemicals, medicine, building materials, grain, carbon, fertilizer, and other industries. The linear vibrating screen is a high-efficiency new type of screening equipment, which can screen materials such as plastic rubber sand and gravel into products of different particle sizes.
