Dual wheel sand washing and drying machine

sand_washer_plant

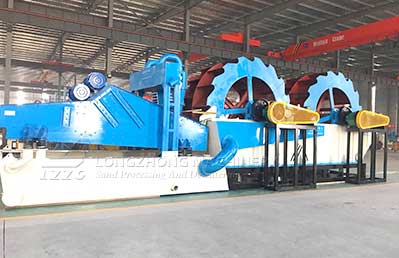

Wheel type sand washing & drying machine

This sand washer is a new type of sand washing plant. On the basis of our original sand washing equipment, it has been updated and upgraded to meet the needs of customers. The double wheel sand washing machine is skillful in docking two wheel bucket washing machines with drying vibrating screen and sand cyclones.

The whole machine has a reasonable structure and small area, which greatly reduces the investment cost for customers in the sand washing link. It integrates heavy water washing and fine sand dehydration and recycling.

*

Working principle

After the pre-processed material enters the first storage tank, the first washing wheel starts to rotate through the motor and reducer, and the material in the first storage tank is picked up from the water and passed through the mesh in the washing wheel. The water and the material below the mesh size are missing, and the qualified material is transferred to the second storage tank. During the rotation of the washing wheel, the material is in full contact with the water, and water is used to remove the impurities on the surface of the material. so the material is cleaner.
The second washing wheel repeats the process of the first washing wheel, and the material is cleaned again.
Then the material enters the dewatering device and removes a lot of moisture through the vibrating screen, which makes the material more convenient to store and transport.

Product Features

1.Two sets of wheel sand washer , water storage tank, pumping tank, water reverse  device, overflow device, separation and recovery device, dewatering device, reducer, pump, motor and other components.
2.The structure is reasonable and the output is stable.

Technical parameters

Model Feed Size (mm) Capacity (t/h) Dianater of Impeller (mm) Hydrocyclone (mm) Screen Panel (mm) Power (kw) Weight (kg) Overall Size (mm)
2LZ1808-55-1224 ≤10 20-40 1800*800 250*2 1200*2400 30.8 7560 7120*3650*2160
2LZ2512-65-1530 ≤10 30-60 2500*1200 300*2 1500*3000 44 8220 8900*5560*2750
2LZ3016-65-1842 ≤10 40-80 3000*1600 300*2 1800*4200 52 15160 11600*5860*3370
2LZ3016-75-1842J ≤10 60-100 3000*1600 350*2 1800*4200 63 16400 11600*5860*3370
2LZ3620-120-2442J ≤10 100-150 3600*2000 300*4 2400*4200 97 21980 12800*6560*3970
2LZ3624-140-3048J ≤10 120-200 3600*2400 350*4 3000*4800 126 32300 12800*7150*4170
2LZ3624-140-3060J ≤10 120-200 3600*2400 350*4 3000*6000 133 33930 13200*7150*4170
2LZ4230-180-3660J ≤10 160-250 4200*3000 300*6 3600*6000 164 44060 14400*7740*4860
